IGU Production
A individual glazed unit consist of 2- or 3-layer glass with an air gap. The glass layers are tightly assembled around a spacer profile. Double and triple-glazed units can serve various purposes, which requiring specific constructions. Regardless of the purpose or construction, we can produce double and triple-glazed units.
All our double and triple-glazed units come standard with energy glass, and the cavities are filled with argon gas, which retains heat and is both invisible and non-toxic. In a standard thermal unit, heat loss is reduced by approximately 0.2 W/m2K when using argon gas instead of atmospheric air in the cavity. This loss is significantly reduced with the use of energy-efficient glass in conjunction with argon gas. With gas in the cavity, air circulation - convection - within the unit is reduced, causing the room's heat to take longer to transfer from the warm glass to the outer cold glass.

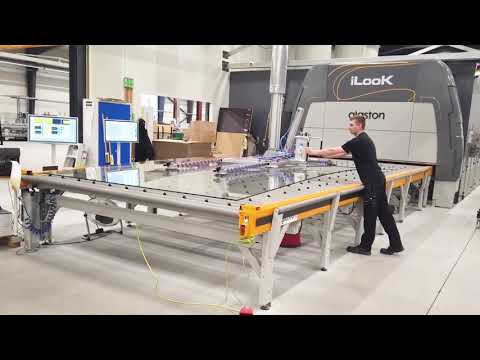

Thermo Line 1 - Bystronic

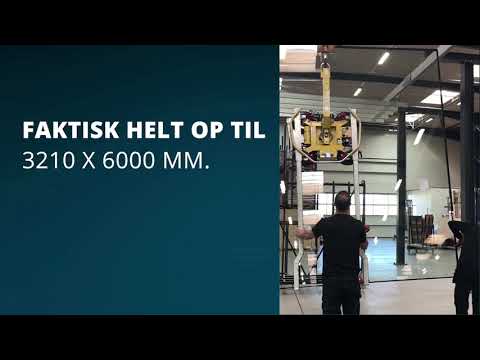

The newest thermal line, where the Super Spacer® T-SpacerTM Premium Plus spacer profile is automatically applied. Read more about Super Spacer® here. This machine is highly suitable for large-format thermal units, as it can handle glass sizes up to 3210 mm x 6000 mm!
| Specifications | |
| Min. size | 190 mm x 350 mm |
| Max. size | 3210 mm x 6000 mm |
| Max. thickness | 100 mm |
|
Step glass - option for 1-4 sides of steps. |
Bottom 0-100 mm. Side og top 0-250 mm. |
Thermo Line 2
The thermal line where the classic Chromatech spacing profiles are applied.
| Specifications | |
| Min. size, 2-layer | 200 mm x 350 mm |
| Min. size, 3-layer | 250 mm x 350 mm |
| Max. size, 2+3-layer | 2700 mm x 4500 mm |
| Max. thickness | 56 mm |
Thermo Line 3
The thermal line is not a machine but relies on traditional manual labor. We assemble the double- and triple-glazed unit ourselves, that cannot produced on the machines. This includes thermal floor glass or double-glazed units in special shapes.
| Specifications | |
| Min. size | On request |
| Max. size | 2700 mm x 5000 mm |
We test your glass
We have our own test centre where we can assess your glass and installation solution.
Let's create results together.
We are ready to help you choose the right glass solution for your specific project.
