Facade glass with MicroShade®
MicroShade® is a microstructured film laminated to the inside of the outer pane of an Individual Glazed Unit. The solution has no moving parts and can be integrated into both double- and triple-glazed Individual Glazed Units.
With our MicroShade® facade glass, it is possible to create facades with views, natural daylight and effective solar shading. MicroShade® is a passive solution with no moving parts, with the solar shading integrated directly into the Individual Glazed Unit.
- Effective shading of direct sunlight
- Thermal comfort
- Natural daylight
- Shading with a view
- No ongoing maintenance
- Passive solar shading with no energy required for operation
MicroShade® facade glass is suitable for commercial and residential buildings with large glazed areas where there is a need to limit solar heat gain while maintaining daylight and views. The solution can help reduce cooling demand.
MicroShade® can be integrated into both double- and triple-glazed units. The solution can also be combined with other functions in the glass.
Declaration of Performance (DoP)
Here you can always find our declarations of performance for Individual Glazed Units with MicroShade®
EPD and documentation package
MicroShade® has a third-party verified EPD (Environmental Product Declaration), which provides documented information on the product's environmental impacts within the life-cycle stages specified in the EPD. Read more and access the EPD here
MicroShade A/S also provides documentation packages for use in connection with building certification schemes such as DGNB, BREEAM and LEED.
SimShade - Shading Calculator
Here you can calculate performance and thermal values for your Individual Glazed Unit with MicroShade®. Access the SimShade Calculator here

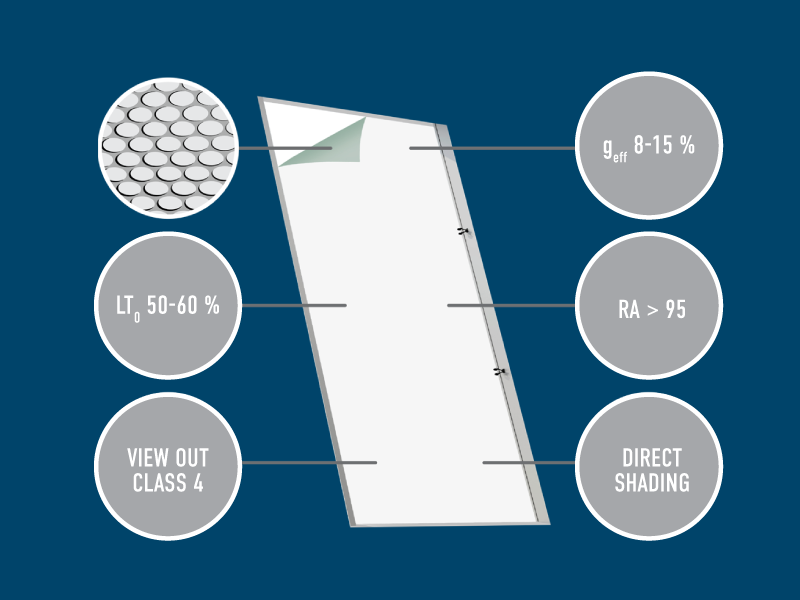

You get this with MicroShade® Individual Glazed Units
Effective shading of direct sunlight
MicroShade® provides up to 97% shading of direct sunlight when the sun is high, helping to limit solar heat gain at the facade.
Thermal comfort
MicroShade® reduces solar heat gain and can thereby reduce cooling demand. Depending on the glazing configuration, an effective g-value of 0.08–0.15 can be achieved.
No ongoing maintenance
MicroShade® is a passive solar shading solution with no moving parts or control units and requires no ongoing maintenance of the solar shading itself.
Natural daylight
MicroShade® maintains natural daylight while limiting solar heat gain. Light transmittance depends on the specific glazing configuration and can be calculated in SimShade.
Shading with a view
MicroShade® provides solar shading while maintaining views through the glazing.
Passive solar shading with no energy required for operation
The passive solar shading requires no energy for operation and has no moving parts requiring ongoing service or maintenance.
Turn the sun into a benefit for your indoor climate
MicroShade® combines integrated solar shading with natural daylight and views. The passive solution reduces solar heat gain without the use of moving parts or controls.
The solar shading is integrated directly into the Individual Glazed Unit and can therefore form part of the facade without the need for external movable solar shading.
What happens when sunlight hits MicroShade®?
MicroShade® uses a microstructure that shades direct sunlight depending on the angle of the sun, while maintaining daylight and views.
- In summer, when the sun is high, MicroShade® provides up to 97% shading of direct sunlight and solar transmittance as low as 8%. This reduces solar heat gain and can thereby reduce cooling demand.
- In winter, when the sun is lower, solar transmittance is approximately 20–35%, allowing a greater proportion of solar heat to contribute to heating.
Let's create results together.
We are ready to help you choose the right glass solution for your specific project.
