AGC Pyrobelite®
Protection against flames, smoke, and heat radiation
Pyrobelite® is laminted glass constructed with a clear interlayer that becomes a rigid and opaque fire barrier at around 120 degree Celsius. This helps to keep heat radiation at a very low and safe level and meets the integrity criteria of EN 1363.

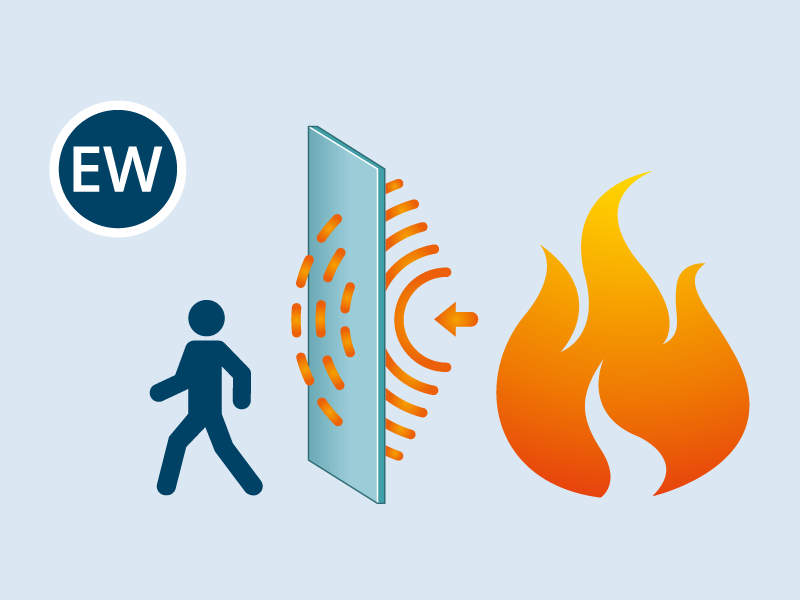

- Fire class EW30
- 30 minutes integrity
- Meets the safety glazing requirements according to DS/EN 12600
- Available only in single glazing for interior solutions
- Can be used in wooden and steel racks
AGC Pyrobelite® can be used for interior solutions and can be incorporated into double-glazed units along with laminated outer glass.
It can be combined with our other functional glass for thermal insulation, solar control, acoustic, personal safety, security, self-cleaning, and printed glass.
AGC Pyrobelite® is available in 7,9 mm and meets the requirements for reduced radiation (class EW).
Standard panel Size: 3230 mm x 2250 mm.
| Type | Thickness | EW | EI | Personal security | Security class | UV resistant | Application |
| Pyrobelite® 7 RF107 | 7,9 mm | 30 | 3(B)3 | - | No | Frame |

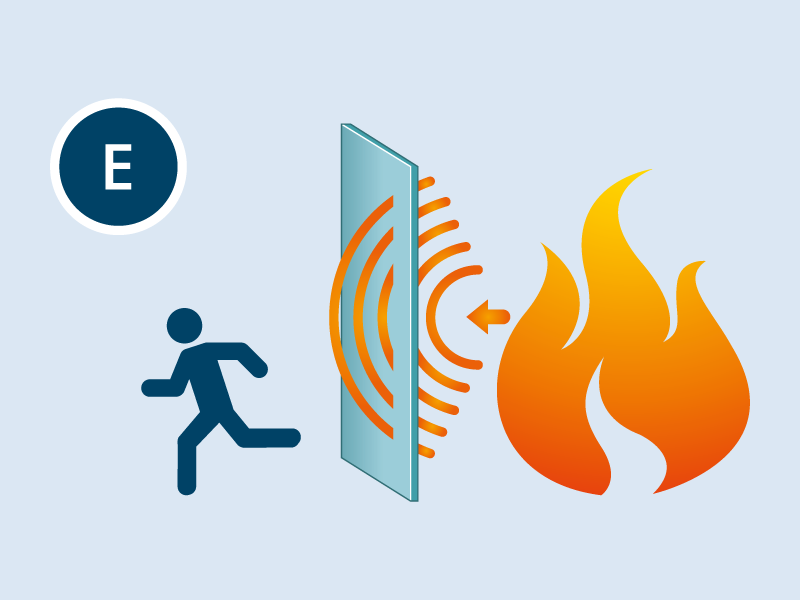

Durability when exposed to flames
- Flames do not penetrate.
- Heat penetrates.
- 30 and 60 minutes.
- Flames do not penetrate.
- Heat penetration is reduced.
- 30 and 60 minutes.
- Flames do not penetrate.
- Heat do not penetrate.
- 30, 60, 90 and 120 minutes.
